SAMMA

---

SAMMA Windows 10 64-bit Applications:

SAMMA Prep | SAMMA Solo | SAMMA Robot | SAMMA DB

New G6 Analysis Engine Available!

One SAMMA Server controls up to 8 external VTRs/Encoders for HD encoding or

Two channels for UHD/4K encoding.

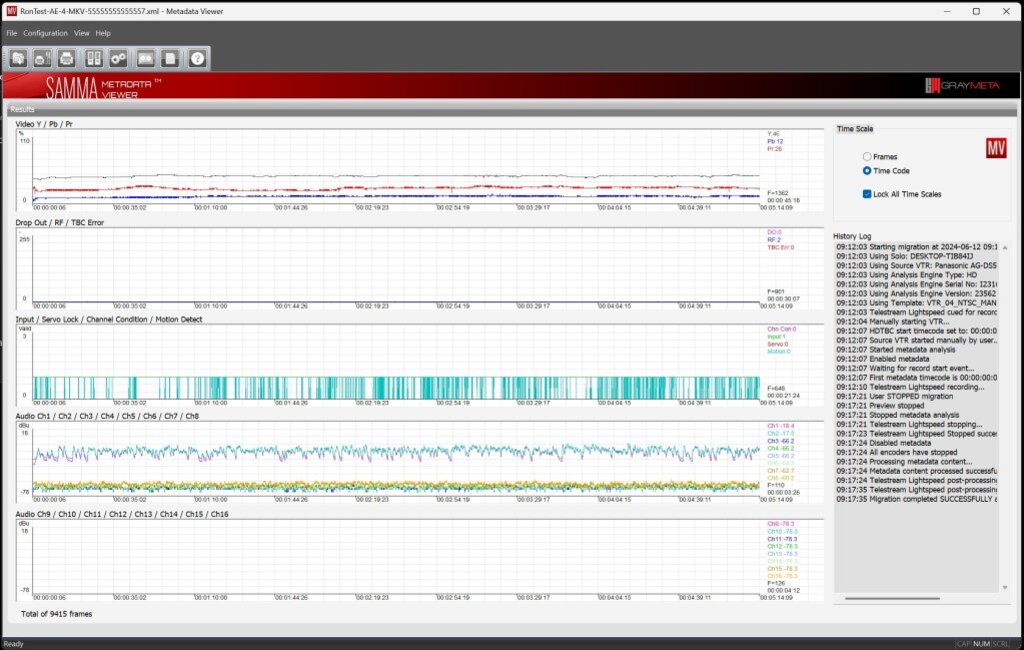

SAMMA Solo Post-Process can deliver files to any mapped destination post-migration, including SAMMA_metadata.xml with checksums

Telestream LightSpeed Live Capture Integration, remote monitoring

via Source Manager, and the option to integrate with Telestream Vantage

for advanced transcoding & delivery.

Encoding configuration via Vantage Workflow Designer

Advanced RPC implementation

New SAMMA Robot error handling that decreases downtime due to VTR errors.

Compatible with G4/G5 SAMMA Analysis Engines

G6 Analysis Engine:

•Analogue inputs supported: CVBS, YUV, YC

•Digital input is 270Mbps-3Gbps SD/HD-SDI

•8 channels of analog audio via XLR, inputs, and outputs

•16 channels of AES audio via XLR, inputs, and outputs

•16 channels of embedded audio in SDI stream, input, and output

•3 x HD/SDI Program outputs

•CVBS, SDI, and HDMI Preview outputs

•RF input for Dropout compensation

•Genlock reference loop-through, CVBS, and Tri-sync for HD

•Dual Analogue Composite decoders, Simple and Line Comb for VHS/U-Matics(color-under systems), Frame Comb for studio quality CVBS

•TBC/Frame Synchroniser

• Dropout compensation using RF signal

•Digital recursive and spatial (Median) noise reduction

•Gamut (color space) legalization

•Full 16-channel audio router

•Digital Timecode support, ATC-LTC, ATC-VITC

•Signalling support including WSS, Video Indexing, AFD, and closed captioning

•Aspect ratio conversion

•Preview channel with On Screen Overlay

•HDMI output for cost-effective monitoring
